Pnumetric Double Head Paste Filling Machine

Double Head Paste Filling Machine
Double Head Paste Filling Machine

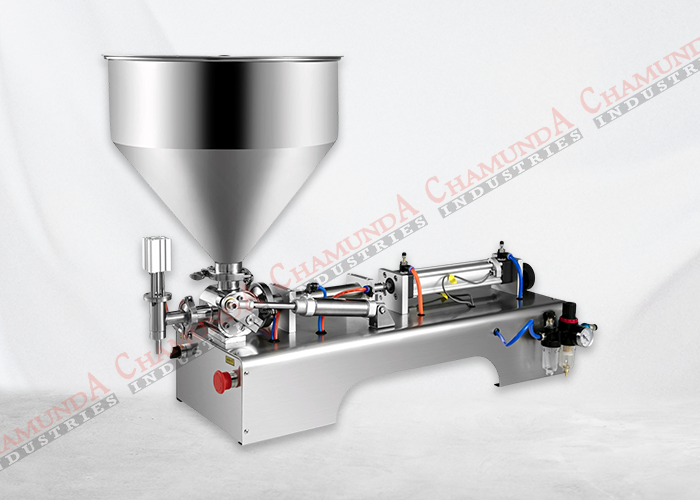

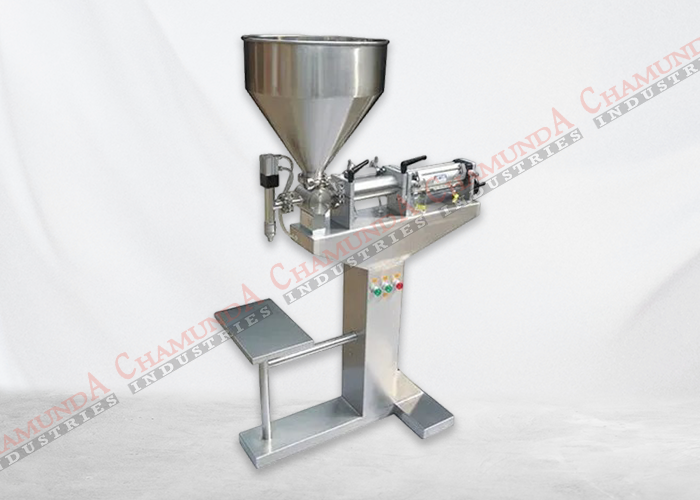

Double head paste filling machine is a semi-automatic filling equipment. The machine is made of 304 stainless steel, simple and easy to remove and clean. High filling accuracy, easy to operate. Single head paste filling machine is widely used in a variety of semi-fluid, paste, thick body, thick sauce. sauces and a variety of materials. Such as syrup, pulp drinks, honey, sesame, tomato sauce, jam, peanut butter, chili sauce and a variety of paste filling

Advantages :

  • Filling capacity and filling speed can be adjusted.
  • Filling system quick release design, easy to wash after use.
  • Pneumatic components are adoCId top-brand pneumatic components.
  • Using PTFE seals and silicone seals (endure high temperature, and acid and alkali resistant, and non-toxic environmental protection).

Specifications :

Model CI-HPF-100 D
CI-VPF-100 D
CI-HPF-300 D
CI-VPF-300 D
CI-HPF-500 D
CI-VPF-500 D
CI-HPF-1000 D
CI-VPF-1000 D
CI-HPF-2500 D
CI-VPF-2500 D
CI-HPF-3000 D
CI-VPF-5000 D
Voltage 200V 50/60Hz
Powder 50W
Air Pressure 0.4-0.6MPa
Filling Volume 10-100 ml 30-300 ml 50-500 ml 100-1000 ml 300-2500 ml 1000-5000 ml
Speed 10-40 bpm
Accuracy ±1%
