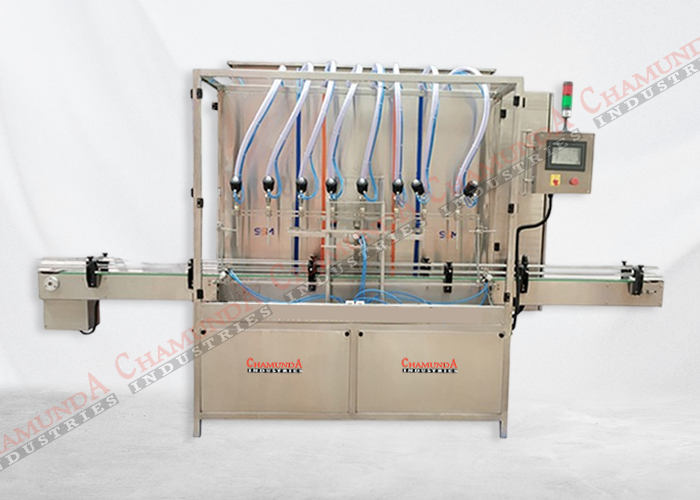

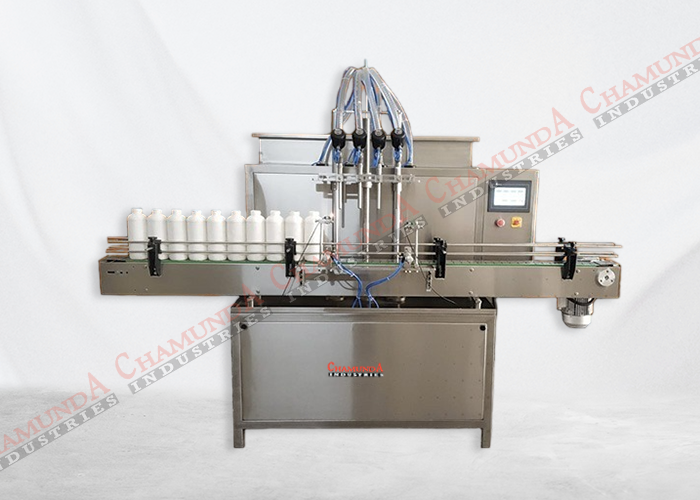

Servo Filling

Servo Filling
Servo Filling

Application :

  • Pharmaceutically liquid, chemical liquid, cosmetics, lotions, shampoos, sauces, syrups, oils, beverages and free flowing liquids.

Salient Features :

  • Complete stainless construction with levelling feet.
  • Stainless Steel gear pump with ryton gears.
  • An inbuilt PLC and Touch Screen HMI for control and operation of machine.
  • Drip tray under the conveyor.
  • No Bottle No Filling System.
  • Synchronized two nos. AC drives for main motor & conveyor belt.

Technical Specification :

Model
CISF-40
CISF-100
CISF-150
CISF-200
Number of Head 2 nos 4 nos 6 nos 8 nos
Speed* Up to 30 bottles per minute Up to 60 bottles per minute Up to 90 bottles per minute Up to 150 bottles per minute
Power 2.5 HP 3.5 HP 5 HP 6.5 HP
Stainless Steel Buffer Tank Approx. 40 liter Approx. 80 liter Approx. 120 liter Approx. 200 liter
Suitable for Products Free Flowing Liquids
Filling Range 50ml to 1000ml or 5 liter or 15 liter
Direction of Movement Left of Right
Filling Accuracy ±0.10% to ±1% Filling accuracy on single dose
Density of liquid Up to 1.2
Working Principle Gear Pump (Positive Displacement Pump)
Operating HMI
Bottle Stopper Pneumatic Cylinder
Diving nozzle Pneumatic Cylinder
Height of Conveyor 850mm (+50mm Adjustable)
Electrical Supply 220 Volts, 1 Phase, 50 Hz.

*(Depends on bottle's material, foaming nature of liquid, neck diameter of bottle and design of bottle)
