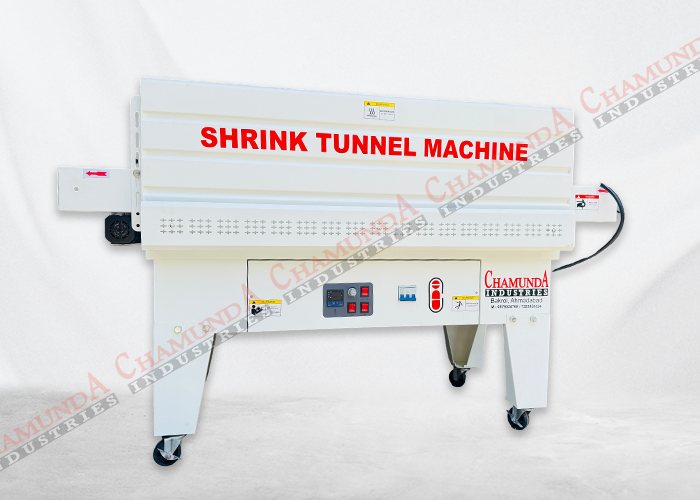

Shrink tunnel adopts hot-wind & down-cyclone structure, intelligence temperature control and AC variable speed regulation. There are two optional conveyors, including Teflon belt type and roller type.
Features :
- Both the height of tunnel and shutters on two sides are adjustable.
- Shrink wrapping machine adopts single & double hot wind tunnel.
- Shrink wrapping machines are designed with lengthened double hot wind tunnel for higher and better shrinking effect.
Close Type :
| Specifications | CI-ST-3020 | CI-ST-4525 | CI-ST-4535 | CI-ST-6535 |
| Voltage (V-Hz) | 220/50, 380/50 (3Ph) 380/50 (3Ph) 220/60 (3Ph) |
380/50 (3Ph) 220/60 (3Ph) |
||
| Power (KW) | 5.1 | 6.5 | 9.6 | 9.6 |
| Loading (kg) | 10 | 30 | ||
| Speed (m/min) | 0 - 10 | |||
| Tunnel Size (LxWxH) (mm) | 900 x 300 x (50-200) | 900 x 450 x (50-250) | 1200 x 450 x (50-350) | 1200 x 650 x (50-350) |
| External Dimensions (LxWxH) mm | 1200x500x1050 | 1200x650x1100 | 1600x650x1200 | 1600x850x1200 |
| Net Weight (kg) | 60 | 90 | 120 | 150 |
| Application: Special for Hing, Pharma, Oil, Automobile, Soap, Detergent & Fertilizer etc. | ||||
