Pnumetric Single head liquid filling

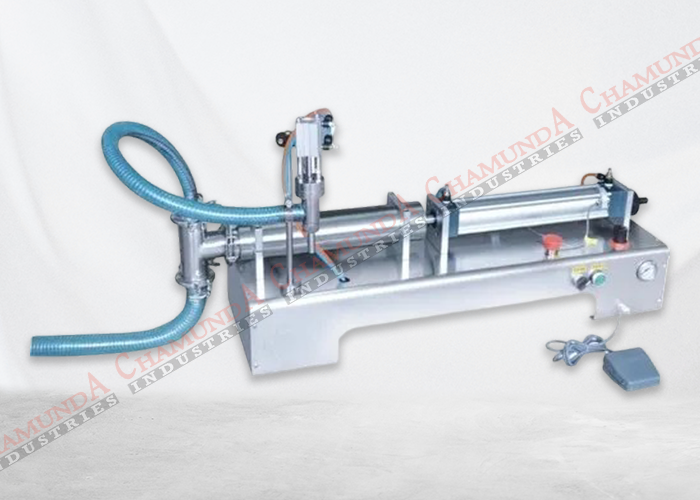

Single Head Liquid Filling Machine
Single Head Liquid Filling Machine

Single head liquid filling machine is a semi-automatic filling equipment. The machine is made of 304 stainless steel, easy to clean, simple and reasonable structure, high filling accuracy, easy to operate. Suitable for a variety of viscous matenals like perfume, toilet water, eye drops, nail polish, sesame oil, wine, liquor, battery liquid, detergent, soya sauce, tomato sause etc

Advantages :

  • Filling capacity and filling speed can be adjusted
  • Filling system quick release design, easy to wash after use
  • Pneumatic components are adoCId top-brand pneumatic components
  • Using PTFE seals and silicone seals (endure high temperature, acid and alkali resistant, and non-toxic environmental protection)

Specifications :

Model CI-HLF-100
CI-VLF-100
CI-HLF-300
CI-VLF-300
CI-HLF-500
CI-VLF-500
CI-HLF-1000
CI-VLF-1000
CI-HLF-2500
CI-VLF-2500
CI-HLF-3000
CI-VLF-5000
Voltage 200V 50/60Hz
Powder 20W
Air Pressure 0.4-0.6MPa
Filling Volume 10-100 ml 30-300 ml 50-500 ml 100-1000 ml 300-2500 ml 1000-5000 ml
Speed 5-20 bpm
Accuracy ±1%
